Product Overview
Hom Kev Lag Luam Clamp- ntawm Ultrasonic Dej Flowmeter siv kev thauj mus los- lub sijhawm thev naus laus zis rau kev ntsuas tsis yog - ntsuas qhov ntsuas qhov ntsuas qhov ntsuas qhov tsis muaj yeeb nkab.
Technical Specifications
|
Qeb & Parameter |
Specification / Tus nqi |
|
Kev ntsuas kev ua tau zoo |
|
|
Kev Ntsuas Txoj Cai |
Kev thauj mus los- lub sijhawm ultrasonic (ob npaug- ntsuas qhov sib txawv) |
|
Qhov tseeb |
±1.0% of reading (velocity >0.2 m / s, max ± 2.0%) |
|
Rov ua dua |
± 0.2% (max ± 0.5%) |
|
Velocity Range |
± 0.01 txog ± 12 m / s (bi-kev taw qhia, qis- ntws hla- tawm 0.03 m / s) |
|
Pipe Size Range |
DN15 rau DN6000 (nyob ntawm tus qauv transducer) |
|
Yuav tsum muaj kua & yeeb nkab |
|
|
Siv tau cov kua dej |
Dej, kais dej, dej rov qab, dej txias / dej txias (turbidity<10,000 ppm) |
|
Ncaj yeeb nkab khiav |
Upstream Ntau dua los yog sib npaug rau 10D, downstream Ntau dua los yog sib npaug rau 5D (tsawg kawg rau qhov ruaj khov ntws profile) |
|
Cov khoom siv yeeb nkab |
Carbon steel, stainless hlau, cam khwb cia hlau, PVC, tooj liab, txhuas (kab kav dej txhawb nqa) |
|
Electronics & Signal Outputs |
|
|
Fais fab mov |
DC 24V (AC 85-264V yeem, ± 10%) |
|
Analog tso zis |
4-20 mA (ua haujlwm, Tsawg dua lossis sib npaug rau 750 Ω load, ± 0.1% FS) |
|
Pulse Output |
OCT mem tes (0-10 kHz, ± 0.05% mem tes dav) |
|
Relay tso zis |
1 × SPST relay (AC 220V / DC 30V max) |
|
Kev sib txuas lus Interface |
RS485 Modbus RTU (2400-38400 bps) |
|
Lub cev & ib puag ncig |
|
|
Kev tiv thaiv ntsuas |
Transmitter IP65 / Transducer IP67 (IP68 yeem, submersible Tsawg dua lossis sib npaug li 2 m) |
|
Ua haujlwm kub |
-20℃txog 60℃(RH Tsawg dua lossis sib npaug li 85%) |
|
Transducer Kub |
-30℃txog 90℃(siab-kub mus txog 160 degree, ± 2℃txwv) |
|
Zaub |
2 × 16 LCD nrog LED backlight |
|
Mounting Hom |
Phab ntsa-mount / DIN-rail; clamp- ntawm V- txoj kev / Z- txoj kev |
Ua raws li & Kev Tswj Xyuas Zoo
Ua raws li & Daim ntawv pov thawj
|
Ncej / Txoj Cai |
Scope ntawm Certification |
Kev Ua Haujlwm & Kev Lag Luam Tus Nqi |
|
CE kos npe |
EN 61326-1 EMC tus qauv |
Kev ruaj ntseg teeb liab kev ua tau zoo nyob rau hauv hluav taws xob suab nrov ib puag ncig |
|
RoHS Cov Lus Qhia |
Txwv tsis pub muaj tshuaj lom; ua kom cov khoom siv lead ua -dawb. |
Ib puag ncig kev nyab xeeb hauv kev siv thiab pov tseg |
|
ISO 9001: 2015 |
Audited zoo tswj system |
Kev tsim khoom zoo ib yam |
|
NIST Traceability |
Traceable rau lub teb chaws metrology qauv |
Muab qhov tseeb siv rau kev tshuaj xyuas thiab kev tshuaj xyuas |
|
Kev ntsuas IP68 |
IEC 60529 Ingress tiv thaiv tus qauv |
Ua kom muaj kev ua haujlwm submersible mus txog 2 m |
Kev Tswj Xyuas Zoo & Kev Tshuaj Xyuas
1.Multi-Point Wet Flow Calibration
Txhua chav tsev raug kuaj nrog 3-point ntub calibration ua ntej xa zaub mov.
2.Transit- Sijhawm Sijhawm Kev Tshawb Fawb
Lub sijhawm ntsuas hluav taws xob raug kuaj xyuas siv oscilloscopes rau lub sijhawm- qhov sib txawv ruaj khov.
3.Thermal Cycling Chamber Aging
Circuit boards undergo −20℃mus rau 60℃thermal cycling kom txo xoom-point drift kev pheej hmoo.
4.Transducer Acoustic Impedance Matching
Kev sojntsuam raug kuaj los ntawm kev ntsuas impedance kom ruaj khov acoustic kis tau tus mob thiab tsis tshua muaj teeb liab attenuation.
5.Enclosure Pressure & Submersion Testing
Transducers tau dhau 2m submersion kuaj los xyuas kom meej IP68 ingress tiv thaiv sealing.
6.Signal Strength & Q-Vim nqi pov thawj
Lub teeb liab lub zog raug kuaj xyuas ntawm Ntau dua lossis sib npaug ntawm 60 dB thaum lub Hoobkas tshuaj xyuas.
Lub Hoobkas muaj peev xwm & OEM / ODM
Lub Hlis Muaj Peev Xwm Ntau Lawm
Muaj peev xwm txhua hli: 5,000 ultrasonic units.
Standard Delivery Lead Sijhawm
Qauv xaj: 3-5 hnub ua haujlwm los ntawm Tshuag.
Private Label & Xim Customization
Txhawb kev cai logo tso, tus kheej laser engraving, thiab tshwj xeeb enclosure xim txuam.
Kev Pabcuam Kev Sib Koom Ua Raws Cai
Pab neeg ua haujlwm tsim kho hloov kho firmware los ua ke tus qauv BACnet lossis M-bus kev sib txuas lus raws tu qauv.
Extended Sensor Cable los ua ke
Cov kab ntau lawm muab tailored teeb liab kab nrog transducer sensor cables ncua mus txog 20 meters.
Lub hom phiaj siv & hom kua dej
|
Lub Hom Phiaj Application |
Siv tau hom kua dej |
Kev siv yam |
|
HVAC & Chilled Dej Systems |
Cov dej txias, txias ntauwd dej, glycol sib tov |
Rau thermal load xyuas thiab voj balancing |
|
Municipal Water Management |
Cov dej haus, dej tsis qab, kho cov dej ntws tawm |
Rau koog tsev kawm ntawv flow thiab network ntsuas |
|
Cov txheej txheem dej |
Cov txheej txheem dej, dej demineralized, yaug dej |
Siv rau kev noj taug qab hauv cov kab ntau lawm |
|
Agricultural Irrigation |
Dej dej, dej hauv av, kua chiv |
Nws yog siv rau kev ntsuas qhov ntim ntawm thaj chaw faib khoom |
|
Aquaculture & Kev Kho Dej |
Recirculated aquaculture dej, lim dej |
Siv rau kev tswj kev noj tshuaj thiab tshuaj xyuas kev ncig |

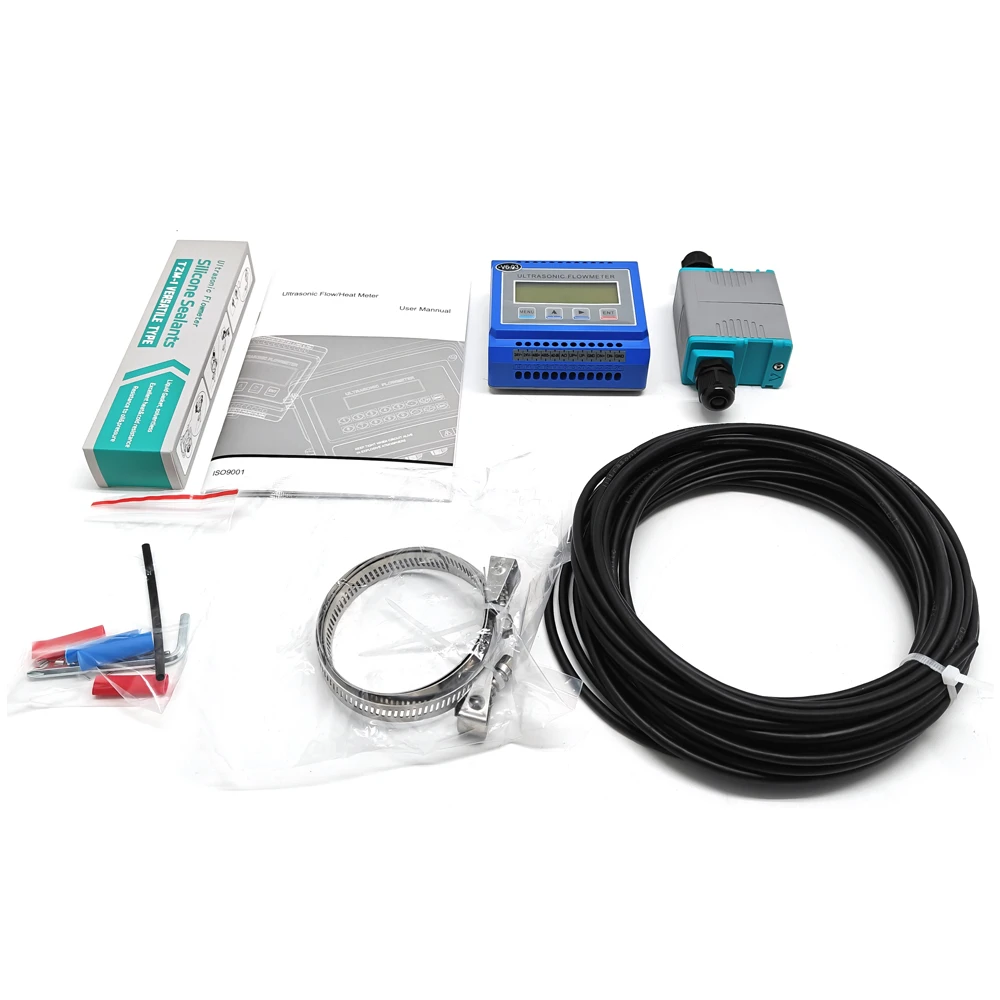

Standard Ntim & Shipping List
1.Reinforced Dual-Pall Corrugated Carton
Hnyav-lub luag haujlwm, ya raws- tiv taus cov khoom ntim sab nrauv tsim los tiv thaiv tus qauv thoob ntiaj teb kev caij nkoj thiab huab cua.
2.Kev cai-Moulded Polyethylene Foam Inserts
High-kev poob siab ntom ntom-absorbing ua npuas ncauj tiv thaiv cov khoom sab hauv los ntawm kev hloov thaum caij nkoj hiav txwv lossis huab cua.
3.Factory Calibration Certificate thiab Phau Ntawv Qhia
Kev ntub dej ntawm tus kheej -calibration data sheet thiab localized English technical instruction manual enclosed.
Cov khoom
FAQ
|

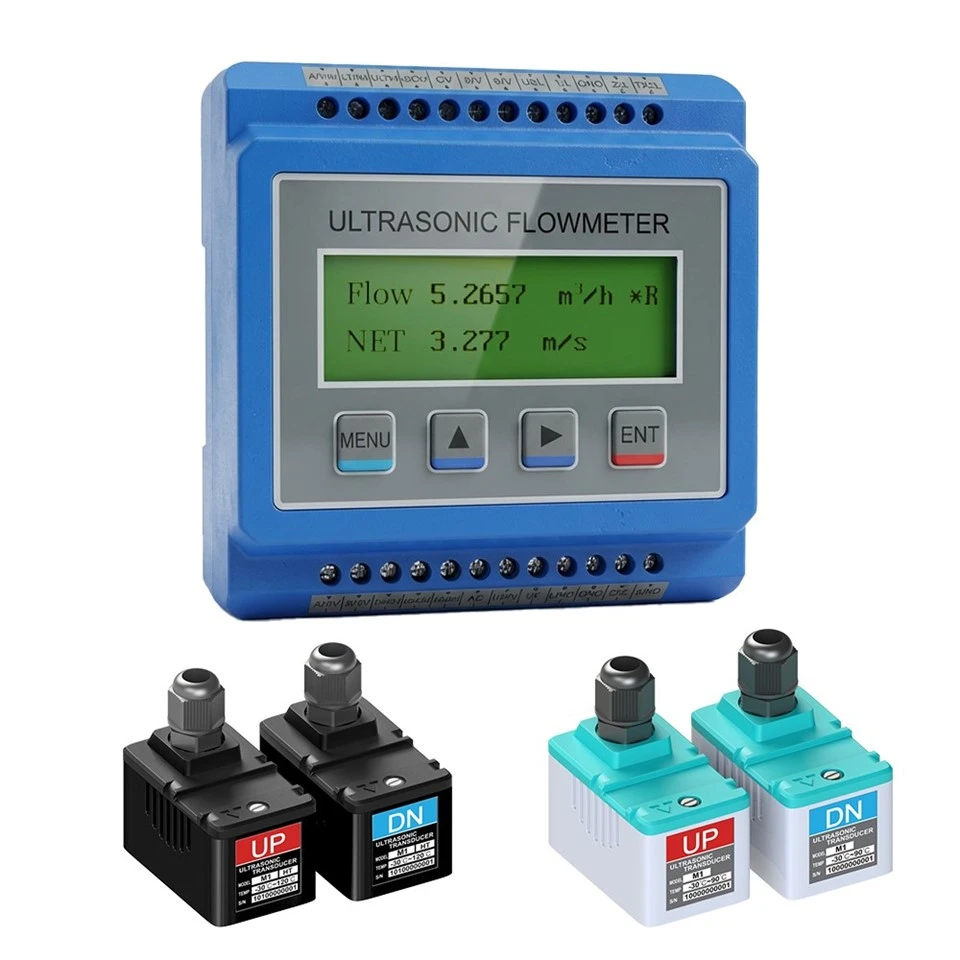

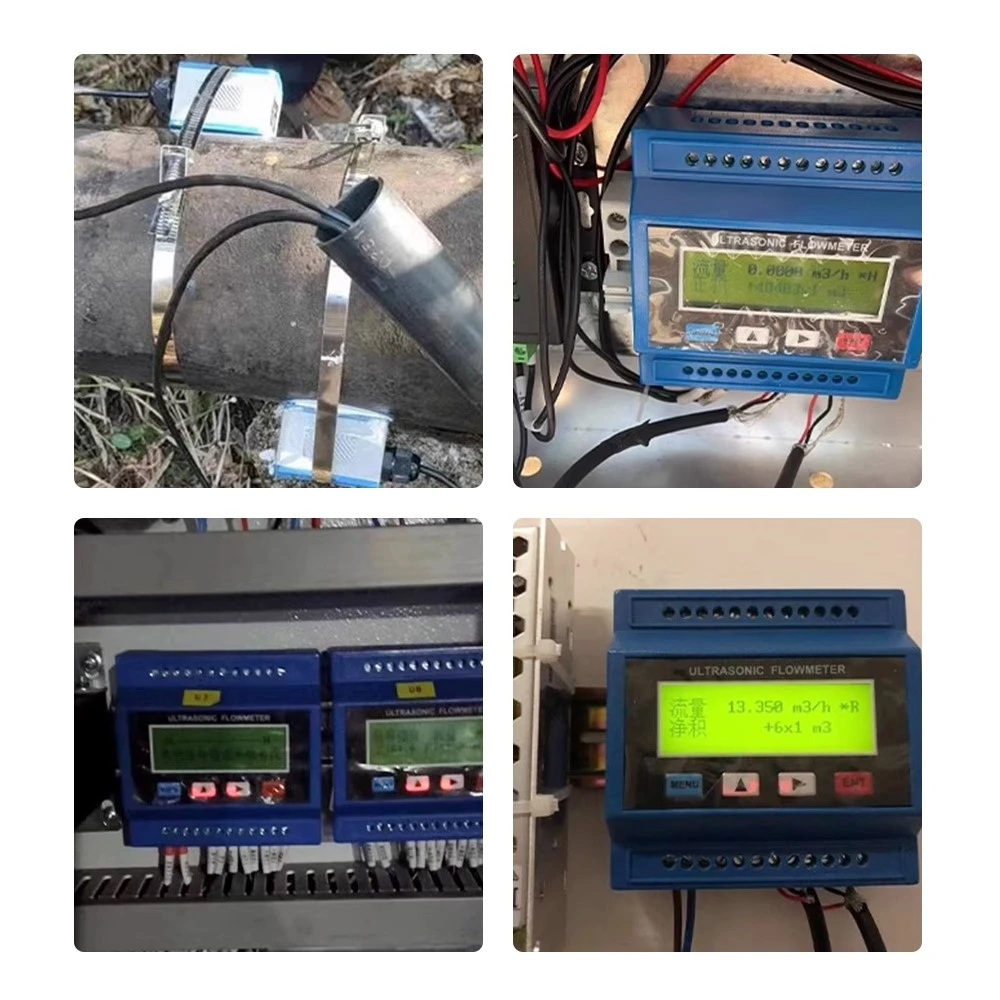

HNF100-C Basic Modular Ultrasonic Flow Meter Parameters |
|
|
Tshwj xeeb Parameters |
Tus nqi / Nqe lus piav qhia |
|
Kev Ntsuas Txoj Cai |
HNF100-C yooj yim modular ultrasonic flowmeter yog ib tug series ntawm siab- precision ultrasonic flowmeters raws li lub sij hawm ultrasonic- txawv txoj cai, featuring 4-byte IEEE754 floating-point ua haujlwm. Nws siv cov kev txawj ntse hybrid teeb liab ua tiav thiab tau siv dav rau kev ntsuas hauv online ntev ntawm ntau yam kua. Nws tuaj yeem ntsia tau yam tsis muaj kev cuam tshuam cov yeeb nkab ntws thiab, thaum nruab nrog lub ntsuas kub ntsuas, tuaj yeem ua tiav qhov ntsuas kub. Nws yog dav siv hauv kev tswj cov txheej txheem, kev ntsuas kev tsim khoom, kev sib cog lus ntawm kev lag luam, thiab tau nkag mus rau hauv kev lag luam xws li dej thiab dej, metallurgy, petrochemicals, dej txuag dej, thiab kev saib xyuas lub zog. |
|
Nominal Diameter Range |
15mm-6000mm |
|
Kev ntsuas qhov tseeb |
+/-1% |
|
Tus nqi ntws |
Ntau dua lossis sib npaug li 0.2m / s |
|
Zaub |
6 × 12 Suav los yog 6 × 24 Western cim dot matrix backlit LCD, txhawb tsib hom lus: Suav, Askiv, Italian, Turkish, thiab Spanish |
|
Nruab nrab kub ntau yam |
-30 ~ 160 degree |
|
Ambient Temperature Range |
Ua haujlwm kub: -20 ~ 60 degree; Sensor: -30 ~ 160 degree |
|
Ntsuas nruab nrab |
Dej, dej hiav txwv, dej khib nyiab, kua qaub- hauv paus kev daws teeb meem, cawv, npias, roj ntau yam, thiab lwm yam kua dej sib xws uas tuaj yeem ua ultrasonic tsis |
|
Transmitter Tsev Khoom |
Hlau, stainless hlau, cam khwb cia hlau, PVC, tooj liab, txhuas, thiab tag nrho lwm cov kav dej ntom ntom, tso cai rau hauv ob sab phlu. |
|
Teeb liab tso zis: |
1 channel 4 ~ 20mA cov zis tam sim no |
|
Teeb liab input |
3 txoj kev 4-20mA tam sim no cov tswv yim, precision 0.1%, tuaj yeem sau cov cim xws li kub, siab, thiab qib |
|
Kev sib txuas lus Interface |
Cais lub RS485 serial interface, tso cai rau kev hloov kho rau lub flowmeter ntawm lub PC, txhawb kev cai xws li MODBUS |
|
Fais fab mov |
DC8-36V lossis AC85-264V (yeem) |
|
Wetted Parts Khoom |
ABS Engineering Yas |
|
Qib tiv thaiv |
Tus tswv tsev: IP30; Sensor: IP68 |
|
Kev siv fais fab |
1.5w |
